Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Name: | ASTM B338 Titanium Seamless Tube | Wall Thickness: | 0.4mm |
|---|---|---|---|
| OD: | 14mm | Length: | 6000mm |
| Grades: | Gr2 | Technique: | Seamless |
| Surface: | Acid Pickling, CNC Lathe Surface | Characteristic: | Rustproof and Corrosion Resistance |
| Status: | Annealed |
Sample Features:

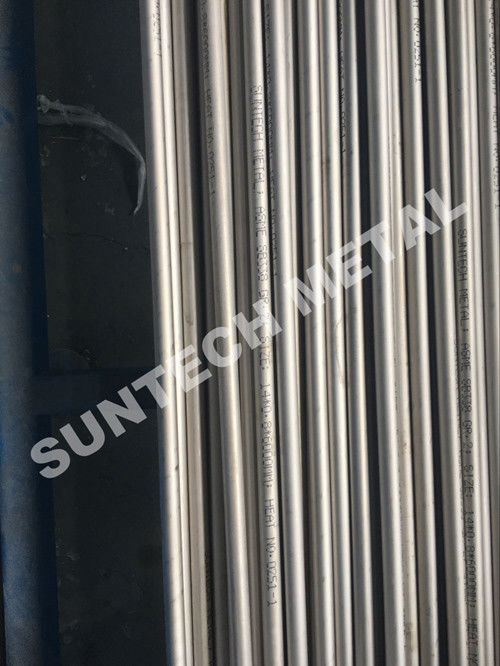

1) Type: Titanium Seamless Tube
2) Standard: ASME SB338 Gr.2
3) Wall Thickness: 0.4mm
4) OD: Φ 14 mm
5) Length: 6000mm
6) Applications: Industrail Heater

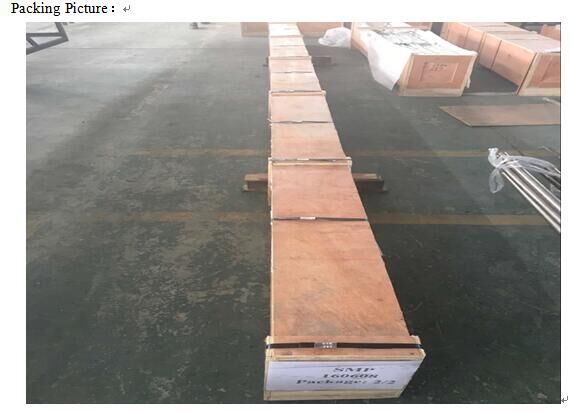

7) Packing: Plywood cases
8) Grade: a) Gr.1(CP titanium, low oxygen)
b) Gr.2(CP titanium, standard oxygen)
c) Gr.7( Ti-Pa, standard oxygen)
d) Gr.9(Ti-3Al-2.5V)
e) Gr.11( Ti-Pa, low oxygen)
f) Gr.12(Ti-Mo-Ni)
g) Gr.16(Ti-Pa,standard oxygen)
h) Gr.17(Ti-Pa,low oxygen)

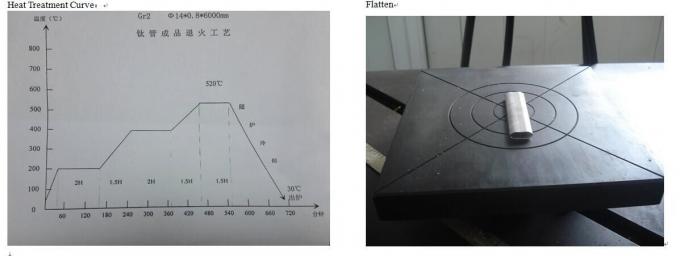

9)Products treatment: Annealed or CWSR
10)Package:Poly-wooden cases
Product performance
1. Low Density and High Strength
2. Excellent Corrosion Resistance
3. Good resistance to effect of heat
4. Excellent Bearing to cryogenic property
5. Nonmagnetic and Non-toxic
6. Good thermal properties
7. Low Modulus of Elasticity
Application
1) Chemical industry
2) Petrochemical industry
3) Machining field, Automobile field, etc.
4) Desalination of sea water
5) Textile printing and dyeing
|
Category |
Standard |
Actual Value |
Judgment |
|
Length |
SB338； L≤6000+7mm |
(6002～6003)mm |
Acceptable |
|
Thickness |
SB338； Thk0.8±0.08mm |
(0.75～0.79)mm |
Acceptable
|
|
Outer Diameter |
SB338； OD14±0.1mm |
13.93～13.98 mm |
Acceptable
|
